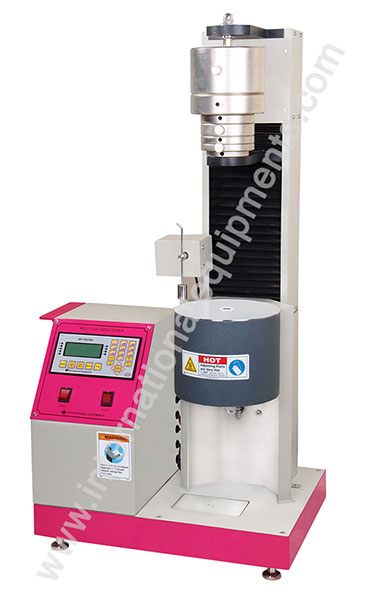

Computerized Melt flow index tester

Microcontroller with alpha numeric key pad having built-in temperature controller with temperature range up to 400 degree centigrade, resolution of 0.1 degree Centigrade and accuracy of +/- 0.1 degree Centigrade similarly built-in timer with range 999.9 seconds.

Specification


  • Piston Travel : Up to 25 mm & resolution of 0.02 mm.
  • Specimen cutting : Motorized.
  • Specimen Weighing : Automatic up to 60 gm and resolution of 5 mg.
  • PC output : Through serial port with Window 7 compatible software.
  • Accessories : Standard accessories*
  • Paint : Powder coated.
  • Power : 230 Volts, 50 Hz, Single Phase.
  • Weight : 0.325 kg, 1.2 kg, 2.16 kg, 3.8 kg, 5 kg, 10 kg & 21.6 kg hard chrome plated weights.
  • Digital Display : Individual MFI, MVR, Melt Density results & average results.

Standard accessories includes Orifice, Piston, Spoon, Spanner, Plumb line, Funnel, Material charger, Mirror, Tweezer, Orifice cleaner, Barrel cleaner, Sample cutter and Accessory stand.
