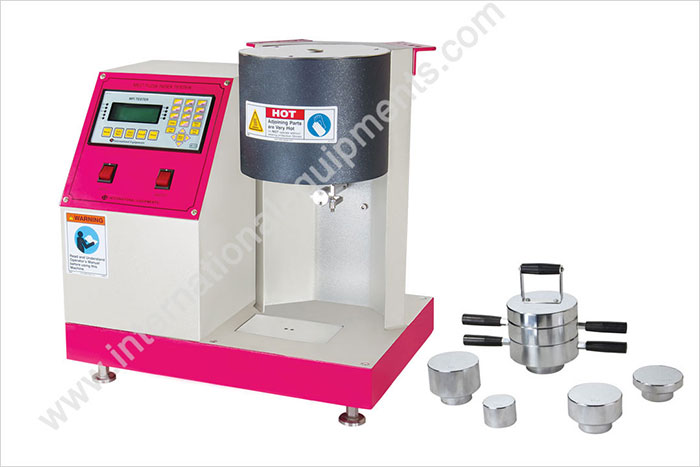

Computerized Melt flow index tester

Microcontroller with alpha numeric key pad having built-in temperature controller with temperature range up to 400 degree centigrade, resolution of 0.1 degree Centigrade and accuracy of +/- 0.1 degree Centigrade similarly built-in timer with range 999.9 seconds.

Specification

• Microcontroller : Highly efficient microcontroller with alpha numeric key pad.
• Temperature range : Up to 400 degree C, resolution of 0.1 degree C & accuracy of +/-0.1 deg C.
• Timer range : Digital timer with range up to 999.9 seconds with preset facility and buzzer output.
• Specimen Cutting : Motorized
• Specimen Weighing : Automatic up to 60 gm and resolution of 1 mg.
• Weight : 1.2 kg, 2.16 kg, 3.8 kg, 5 kg & 21.6 kg hard chrome plated weights.
• Digital Display : Individual MFI result with average results facility.
• PC output : Through serial port with Window 7 compatible software.
• Accessories : T.C Orifice, Piston, Spoon, Spanner, Plumb line, Material charger,Barrel cleaner, Funnel, Tweezer, Orifice cleaner, & Accessory stand.
• Paint : Powder Coated.
• Power Supply : 230 Volts, Single Phase.

Standard accessories includes Orifice, Piston, Spoon, Spanner, Plumb line, Funnel, Material charger, Mirror, Tweezer, Orifice cleaner, Barrel cleaner, Sample cutter and Accessory stand.
